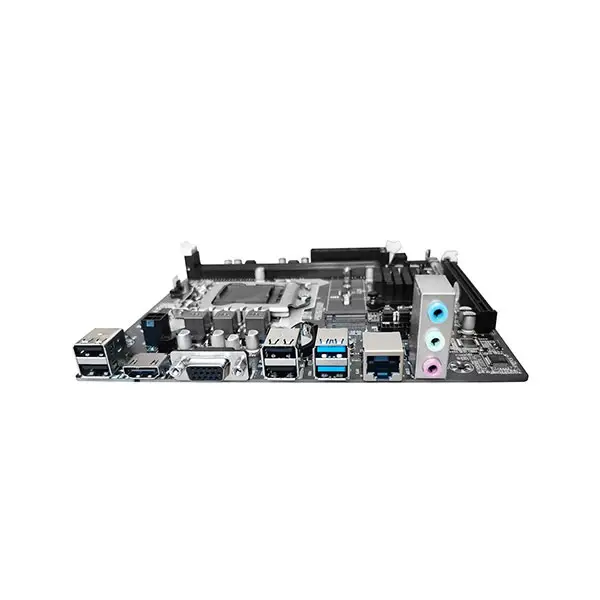

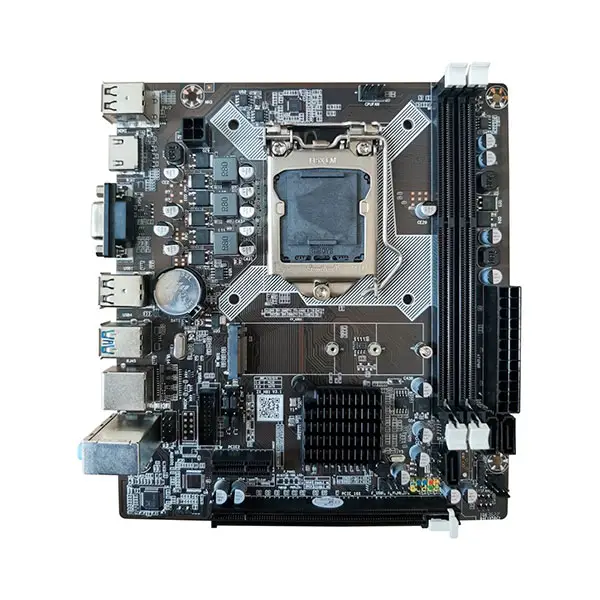

ARKTEK AK-H81M EL 4th Gen micro-ATX Motherboard
Stock :
In Stock
SKU : P0982
Brand : Arktek
Category : Motherboard
Subcategory : ARKTEK
Child Category : Arktek
Key Features of AK-H81M EL:
| Chipset: Intel H81 Chipset for 4th Gen |
| Socket: Intel Socket LGA1150 |
| Storage: 3 x SATA, 1xM.2 supports NVME+NGFF |
| Memory: 2 x Dual Channel DDR3 1066/1333/1600MHz |
| Warranty: 3-Year Brand Warranty |
Price
৳ 5600
৳ 6000
| CPU Support | Support Intel® Corei7/i5/i3/Pentium/Celeron processors in the LGA1150 package. Support Intel 4th generation multi-core processors. |
| Chipset | Intel H81 Chipset |
| On-Board Graphics | Integrated Graphics Processor |
| Memory | Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory |
| DIMM | 2 x Memory Slots (Max. up to 8GB each) |
| LAN | Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps (Optional) |
| Audio | Onboard Realtek 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack |
| SATA | 3 x SATA, 1xM.2 supports NVME+NGFF |
| Rear I/O | 1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack (Line in / Line Out / Mic-in) |
| Internal I/O | 1 x USB 2.0 pin header supports additional 2 USB 2.0 ports 1 x Front Panel Audio pin-header |
| Expansion Slots | 1 x PCI Express x16 slot |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (19 X 17 cm) |
| Mounting | 6 mounting holes |
| Accessories | 1 x SATA cable,1 x I/O Backboard,1 x User Manual,1 x Driver CD |
| Warranty | 3-Year Brand Warranty |
